Turning the load on/off (TS-MPPT models)

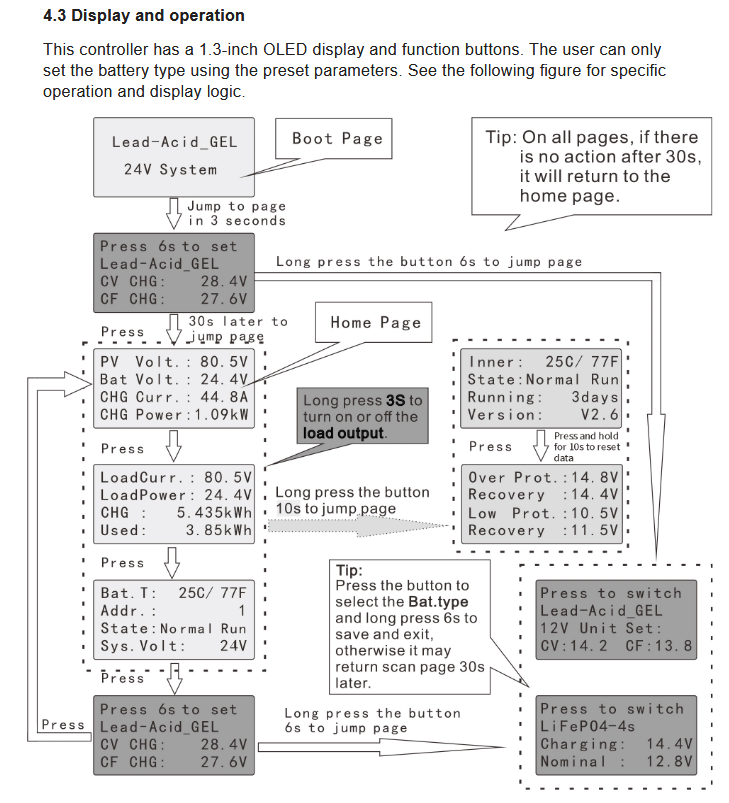

To turn the load on or off, first you need to press the silver button until you see the load information screen as seen below:





When on this screen, hold the silver button down for 3 seconds and the load will turn on or off depending on what state the

controller is already in.

To confirm the load is on, the middle led light to the left will be on.

To confirm the load is off, the middle led light to the left will be off.
