How do I install the rails on step 3 of the TPSM-80x4-UNI?

How do I install the rails on step 3 of the TPSM-80x4-UNI?

Applicable models:
TPSM-80x4-UNI
TPS-24-360W
TPS-12-85W

Step 3 of the setup for the TPSM-80x4-UNI can seem confusing at first, but the way that the panel is mounted to the rails is simpler than it may seem.

The side of the rail with holes in it will overhang from the frame of the solar panel, allowing you to attach the clamps to the bottom edge of the frame using the included bolts and washers.

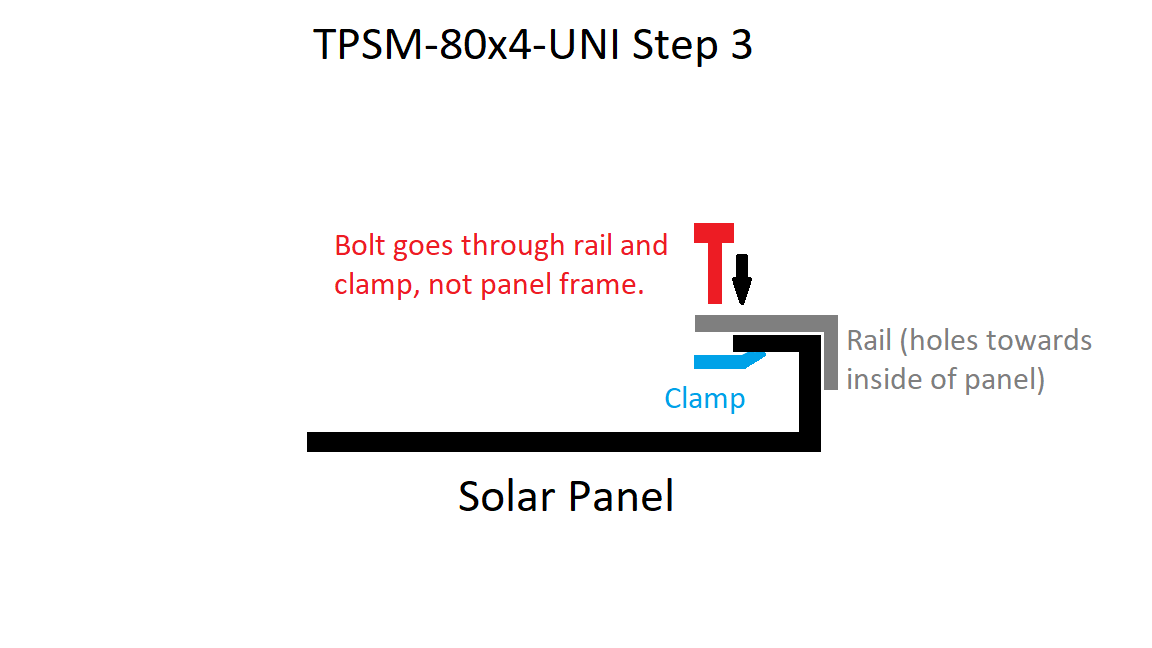

Here is a mockup of a side view to help you visualize what needs to be done:
