How can I add a grid or generator powered battery charger to my RemotePro system with MPPT solar controller?

Applicable Systems:

All RemotePro systems:

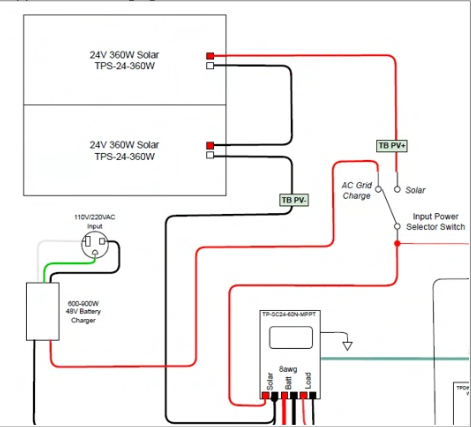

The following wiring diagram shows how to add an AC powered battery charger to the RemotePro system to provide supplemental charging of the batteries.
